編碼X1G005571004300是一款低損耗的醫療設備OSC晶振，日系頻率元器件知名制造商愛普生公司，通過不斷放大自身的影響力，實現名利雙贏的局面，同時也贏得廣大用戶的信賴，這是一家非常有眼光的全球型企業，對待任何問題，都懂得主動承擔起社會責任。主要供應高性價比的有源晶振，石英晶振，溫補晶振等產品，當今世界中，人類正面臨著氣候變化、新冠疫情等牽一發而動全身的全球危機，想要成為消費者心中不可或缺的企業，必然要在產品之外給予消費者更多社會價值。

Product Number	Model	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005571003200	SG-8018CA	32.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003300	SG-8018CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003400	SG-8018CA	8.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003500	SG-8018CA	14.745600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003600	SG-8018CA	14.745600 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003700	SG-8018CA	12.288000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003800	SG-8018CA	12.288000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571003900	SG-8018CA	33.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004000	SG-8018CA	33.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004100	SG-8018CA	30.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004200	SG-8018CA	30.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004300	SG-8018CA	26.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004400	SG-8018CA 晶振	26.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004500	SG-8018CA	24.576000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004600	SG-8018CA	24.576000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004700	SG-8018CA	100.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004800	SG-8018CA	100.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571004900	SG-8018CA	4.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005000	SG-8018CA	4.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005100	SG-8018CA	66.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005571005200	SG-8018CA	66.000000 MHz	7.00 x 5.00 x 1.40 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

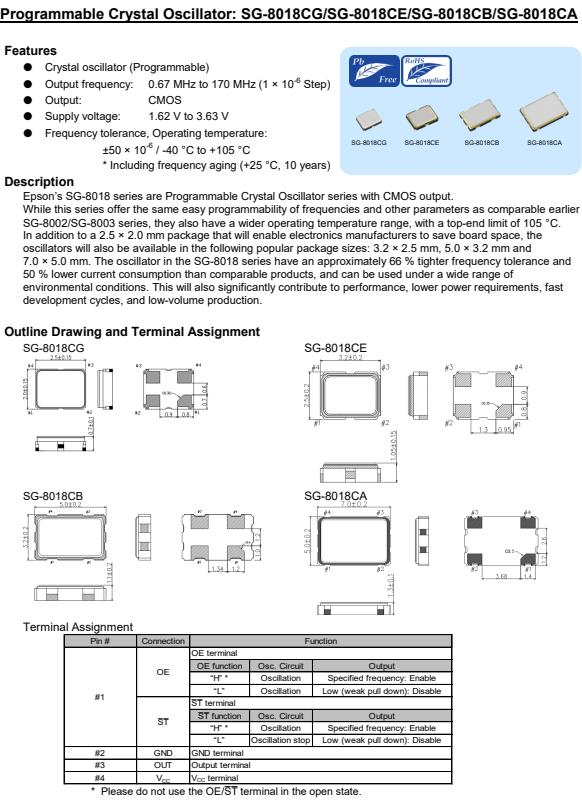

愛普生公司很高興推出了SG-8018CA晶振，醫療電子編碼X1G005571004300，F(xiàn)requency26.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)7.00 x 5.00 x 1.40 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，具有低損耗，低抖動，高品質的特點，適合用于華為手機無線充電器，投影機，醫療設備，電子產品等領域。
